RTC Module (DS3231 / DS1307)

The RTC (Real Time Clock) Module like DS3231 or DS1307 keeps accurate time even when the main power is off, thanks to its onboard coin cell battery. It’s commonly used in time-based automation, data logging, and IoT systems.

How It Works?

The RTC communicates with microcontrollers via the I²C (SDA, SCL) interface. It maintains seconds, minutes, hours, days, months, and years using an internal crystal oscillator and backup battery.

Key Features

Accurate timekeeping with built-in crystal oscillator
Battery backup for continuous time maintenance
I²C communication for easy integration
Supports both DS1307 and DS3231 chips


// RTC DS3231 Example - Display Date and Time on Serial Monitor
#include
#include "RTClib.h"

RTC_DS3231 rtc;

void setup() {
  Serial.begin(9600);

  // Initialize RTC
  if (!rtc.begin()) {
    Serial.println("Couldn't find RTC");
    while (true);  // Halt if RTC not found
  }

  // If RTC lost power, set time to the sketch compile time
  if (rtc.lostPower()) {
    Serial.println("RTC lost power, setting time to compile time!");
    rtc.adjust(DateTime(F(__DATE__), F(__TIME__)));
  }
}

void loop() {
  DateTime now = rtc.now();

  // Print date in DD/MM/YYYY format
  Serial.print(now.day());
  Serial.print('/');
  Serial.print(now.month());
  Serial.print('/');
  Serial.print(now.year());
  Serial.print(' ');

  // Print time in HH:MM:SS format with leading zeros
  if (now.hour() < 10) Serial.print('0');
  Serial.print(now.hour());
  Serial.print(':');

  if (now.minute() < 10) Serial.print('0');
  Serial.print(now.minute());
  Serial.print(':');

  if (now.second() < 10) Serial.print('0');
  Serial.println(now.second());

  delay(1000);  // Update once per second
}

Applications of RTC Module

RTC modules are used wherever precise time tracking is required.

Data Logging

Used in systems that need timestamps for each data entry.

Digital Clocks

Helps create accurate standalone real-time clocks.

IoT Devices

Ensures devices perform tasks at scheduled times.

Scheduling Systems

Used in alarms, reminders, and automatic control systems.

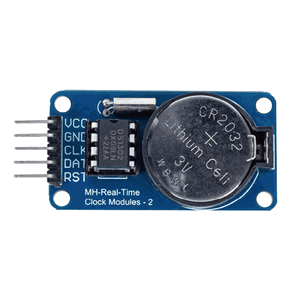

RTC Module
