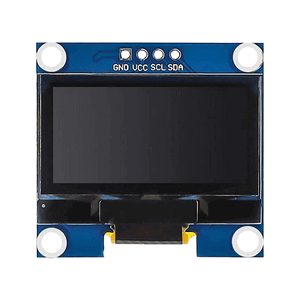

OLED Display (SSD1306)

The OLED Display is a compact, high-contrast screen used in electronics and IoT projects. It uses organic light-emitting diodes for each pixel, meaning no backlight is required — making it bright, energy-efficient, and ideal for displaying sensor readings, data, and status messages.

How It Works?

The OLED communicates with microcontrollers (like Arduino or NodeMCU) via I2C or SPI protocol. It displays data such as temperature, humidity, or custom messages, directly from sensors or IoT systems.

Key Features

0.96” display with 128x64 resolution
High contrast and wide viewing angle
Low power consumption
Supports I2C/SPI communication
Works with Arduino, ESP8266, ESP32, etc.


// OLED Display Example for Arduino (SSD1306)

// Include necessary libraries
#include
#include
#include

// OLED display dimensions
#define SCREEN_WIDTH 128
#define SCREEN_HEIGHT 64

// OLED reset pin (use -1 if connected to Arduino reset)
#define OLED_RESET -1

// Create display object (I2C interface)
Adafruit_SSD1306 display(SCREEN_WIDTH, SCREEN_HEIGHT, &Wire, OLED_RESET);

void setup() {
  // Start serial communication for debugging
  Serial.begin(115200);

  // Initialize the OLED display using I2C address 0x3C
  if (!display.begin(SSD1306_SWITCHCAPVCC, 0x3C)) {
    Serial.println(F("Error: OLED display not found."));
    while (true); // Halt if display initialization fails
  }

  // Clear the display buffer
  display.clearDisplay();

  // Set text properties
  display.setTextSize(1);               // Text size multiplier (1 = default)
  display.setTextColor(SSD1306_WHITE);  // White text on black background

  // Display messages
  display.setCursor(10, 10);
  display.println("YSEF OLED Display");

  display.setCursor(10, 30);
  display.println("Hello, IoT World!");

  // Push buffer to the screen
  display.display();
}

void loop() {
  // Future expansion: Display sensor data or dynamic content
}

Applications of OLED Display

OLEDs are used in IoT dashboards, robotics, and real-time monitoring projects.

Sensor Display

Shows live readings like temperature, humidity, or light levels.

Robotics

Displays robot status or movement information.

IoT Dashboard

Visualize real-time IoT data in compact screens.

Wearable Devices

Used in smart watches or compact portable devices.
