16x2 LCD Display Module

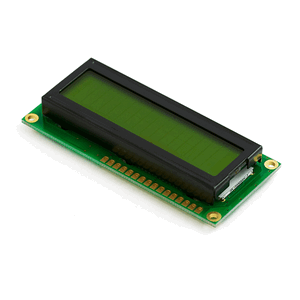

The 16x2 LCD Module is a popular display unit used in embedded and robotics projects. It can display 16 characters per line on 2 lines and is widely used to show sensor data, messages, or system status.

How It Works?

It works based on the HD44780 controller. The module communicates with the microcontroller using parallel communication (4-bit or 8-bit mode). Each character is displayed using a 5x8 pixel matrix.

Key Features

16 characters × 2 lines display
Operates on 5V DC
Adjustable contrast via potentiometer
Compatible with Arduino and Raspberry Pi


// 16x2 LCD Display Interfacing with Arduino

#include

// Initialize the library with the interface pins
// RS, Enable, D4, D5, D6, D7
LiquidCrystal lcd(12, 11, 5, 4, 3, 2);

void setup() {
  lcd.begin(16, 2);          // Set LCD dimensions: 16 columns, 2 rows

  lcd.print("Hello, YSEF!"); // Display welcome message
  delay(2000);               // Pause for 2 seconds

  lcd.clear();               // Clear the display

  lcd.setCursor(0, 0);       // Set cursor to first column, first row
  lcd.print("Robotics Module");

  lcd.setCursor(0, 1);       // Set cursor to first column, second row
  lcd.print("LCD 16x2 Demo");
}

void loop() {
  // No repeated tasks needed for this demo
}

Applications of 16x2 LCD Module

Commonly used for display in embedded, IoT, and robotics systems.

Sensor Readouts

Displays real-time data like temperature, humidity, or voltage.

Robotics Control

Shows robot status, mode, or task feedback to users.

Embedded Systems

Used to display menu or debug info in microcontroller projects.

IoT Dashboards

Provides live display for IoT-based monitoring systems.

LCD Module
