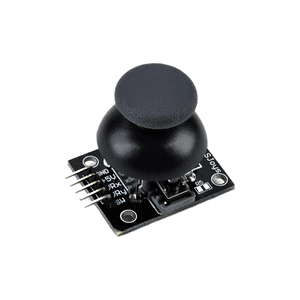

Joystick Module (XY + SW)

The Joystick Module is an analog input device similar to the joysticks found in gaming controllers. It provides analog outputs for X and Y axes and a digital output for the built-in push button, making it perfect for controlling robotic movements, servo angles, or as a user input device.

How It Works?

The joystick uses two potentiometers to detect movement along the X and Y axes. As you move the stick, the output voltage changes from 0V to 5V, which can be read by a microcontroller’s analog pins. Pressing the joystick triggers a digital LOW signal on the SW pin.

Key Features

Analog X and Y axis output
Digital push button output (SW)
Operating voltage: 5V
Durable design with smooth motion
Ideal for Arduino and ESP32


// Joystick Module Example with Arduino
// Connections:
// VCC → 5V
// GND → GND
// VRX → A0
// VRY → A1
// SW  → D2

const int xPin = A0;  // X axis
const int yPin = A1;  // Y axis
const int swPin = 2;  // Push button

void setup() {
  Serial.begin(9600);
  pinMode(swPin, INPUT_PULLUP);
  Serial.println("Joystick Ready!");
}

void loop() {
  int xVal = analogRead(xPin);
  int yVal = analogRead(yPin);
  int swVal = digitalRead(swPin);

  Serial.print("X: ");
  Serial.print(xVal);
  Serial.print(" | Y: ");
  Serial.print(yVal);
  Serial.print(" | Button: ");
  Serial.println(swVal == LOW ? "Pressed" : "Released");

  delay(200);
}

Applications of Joystick Module

A versatile module used for movement control and directional input in robotics.

Robot Control

Manually control robotic car or arm movements.

Gaming Devices

Used in custom game controllers or simulators.

Servo Control

Control multiple servos using analog joystick input.

DIY Projects

Useful for drones, camera gimbals, and IoT experiments.
