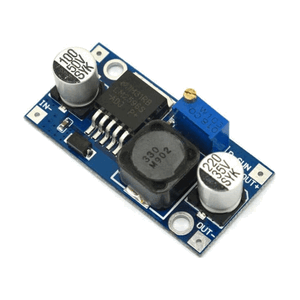

DC–DC Converter (Step-Down LM2596)

The LM2596 DC–DC Step-Down Converter is a power regulation module that efficiently reduces a higher DC voltage to a lower one. It’s commonly used in robotics and IoT projects to safely power sensors, microcontrollers, and other low-voltage components.

How It Works?

This converter uses a **buck switching regulator** to step down voltage with minimal heat loss. It stores energy in an inductor and releases it at a controlled rate, maintaining stable output even with varying input loads.

Key Features

Input Voltage: 4V – 40V DC
Output Voltage: 1.25V – 37V (adjustable)
Max Output Current: 3A
High efficiency up to 92%
Thermal shutdown and current limit protection


// LM2596 DC-DC Converter Output Voltage Measurement
// Using Arduino analog input and a voltage divider circuit

const int analogPin = A0;             // Arduino analog input pin connected to voltage divider output
const float referenceVoltage = 5.0;  // Arduino ADC reference voltage (usually 5V)
const int adcMaxValue = 1023;         // Maximum ADC value for 10-bit ADC (0-1023)

// Voltage divider resistor values (used to scale down LM2596 output voltage)
// Actual output voltage = Measured voltage * (R1 + R2) / R2
const float R1 = 10000.0;  // Resistor connected between LM2596 output and analog pin
const float R2 = 10000.0;  // Resistor connected between analog pin and ground

void setup() {
  Serial.begin(9600);
  Serial.println("Starting LM2596 output voltage measurement...");
}

void loop() {
  int adcValue = analogRead(analogPin);                        // Read raw ADC value from analog pin
  float measuredVoltage = (adcValue * referenceVoltage) / adcMaxValue;  // Convert ADC value to voltage at analog pin
  float outputVoltage = measuredVoltage * (R1 + R2) / R2;      // Calculate actual LM2596 output voltage

  Serial.print("LM2596 Output Voltage: ");
  Serial.print(outputVoltage, 2);  // Print voltage with two decimal places
  Serial.println(" V");

  delay(1000);  // Wait 1 second before next reading
}

Applications of DC–DC Step-Down Converter

Used widely in robotics and IoT systems for stable power management.

Robotics Power Supply

Provides stable 5V or 12V for motors and sensors.

Battery-Powered Systems

Efficiently converts higher battery voltage to required level.

Embedded Controllers

Ensures safe voltage for microcontrollers and logic circuits.

Solar Projects

Used in solar energy systems for voltage regulation.
